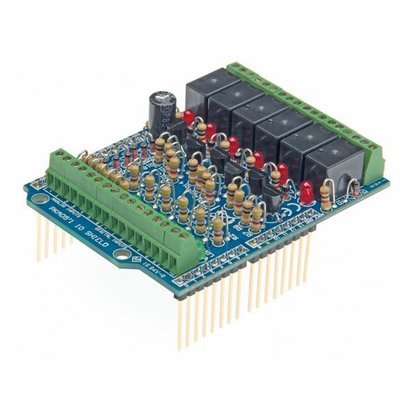

Velleman I/O Shield for ARDUINO®

Article number: VEL-WPSH05
€37,90
Incl. VAT

The rating of this product is 0 out of 5

(0)
Out of stock (Delivery timeframe:Contact us for the delivery time.)
Add to wish list Add to wish list

General purpose INPUT - OUTPUT shield for Arduino®


Features

  • 6 relay outputs: 0.5A max 30V (*)
  • 6 analog inputs
  • 6 digital inputs
  • downloadable sample sketch
  • stackable design: the shield can be stacked with other shields
  • large user community
  • requires 1 Arduino UNO™ (not included)

Specifications

  • 1 A (max.) load per output
  • 30 V max. per output
  • uses pin 8 to 13 as outputs, pin A0 to A5 as analog inputs, and pin 2 to 7 as digital inputs
  • dimensions: 70 x 55 x 30 mm / 2.75 x 2.16 x 1.18"

Extras

  • (*) It is required to power the Arduino UNO (not supplied) with a 12V DC 500mA power supply (not supplied)



  • This shield will not work with the Arduino Yún. Use the KA08 or VMA08 with the Arduino Yún.
