Introduction

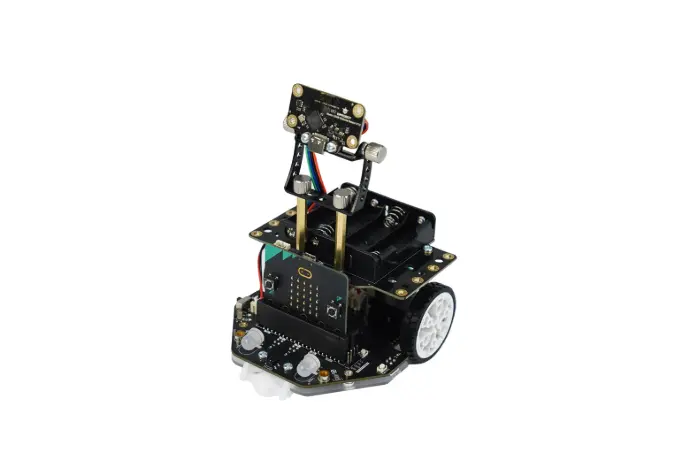

The Maqueen Plus V3 is an advanced educational robot engineered to revolutionize STEM robot education and competitions for primary and secondary school students. The Maqueen Plus V3 operates by integrating a sophisticated suite of sensors and control mechanisms. It leverages a powerful matrix laser ranging sensor for environmental perception, high-precision motor encoders with PID control for accurate movement, and built-in algorithms for complex tasks such as line-tracking and intersection recognition. These capabilities allow for more dynamic and intricate applications in educational settings.
Precision Navigation with Matrix Laser Ranging
The Maqueen Plus V3 features a cutting-edge matrix laser ranging sensor, a significant leap from standard ultrasonic sensors. This provides superior accuracy (e.g., ±11mm for white targets at 20-200mm) and rapid response (up to 60Hz in 4x4 mode) over a 60-degree field of view. This enables the robot to not only detect distances but also pinpoint obstacle positions, facilitating intelligent route planning and sophisticated obstacle avoidance for advanced autonomous movement.
Simplified Advanced Tasks with Built-in Algorithms
Mastering line-tracking and intersection navigation is streamlined with algorithms integrated directly into the robot's core. The onboard line-tracking significantly lowers the entry barrier to this fundamental skill, allowing students to focus on higher-level strategies. Furthermore, the innovative built-in intersection recognition identifies various junction types (crossroads, T-junctions, etc.) in real time, enabling the creation of complex map-based challenges and enriching competition diversity. These functions operate independently, freeing the main controller for other tasks.
Accurate Movement with Motor Encoders & PID Control
Unlike many educational robots lacking precise motion capabilities, the Maqueen Plus V3 incorporates high-precision motor encoders with PID (Proportional-Integral-Derivative) control. This allows for exact control over travel distance and steering angles without cumbersome trial-and-error debugging. Expect reliable and repeatable performance in tasks demanding accurate navigation, a crucial advantage in both educational settings and competitive arenas.
Enhanced Light Interaction
Enhanced interaction comes from dual light intensity sensors for applications like light-seeking or automatic headlights, complemented by vibrant, programmable RGB headlights and ambient lights that spark creativity and make learning more engaging
Detachable Metal Motor Components
The Maqueen Plus V3 is equipped with finely parameter-matched metal motors, selected after rigorous testing and verification of over 30 motor samples to ensure optimal performance, reliability, and speed, resulting in smooth rotation without stalling. The motors are holistically protected to minimize the risk of debris entering and damaging the gearbox. Recognizing the frequent use and potential wear (e.g., brush wear, damage from accidental drops or squeezing) in advanced teaching and competitions, the robot features a detachable motor design. This allows for quick replacement of damaged motors, preventing disruptions to educational activities and competitions.
Additionally, a dedicated voltage-stabilizing chip for the motors ensures consistent running speed, unaffected by battery voltage decline, allowing programs to run reliably without parameter modifications.
Applications
STEM Robot Education
Robotic Competition
Specification
Power Supply
AA Battery Version: 3.5V - 6V (Requires 4x AA batteries - 1.5V dry cells or 1.2V Ni-MH rechargeable)
Protection: Battery reverse connection protection supported
Onboard Sensors & Perception
Line-Tracking System:
Sensors: 5
Calibration: Dedicated button
Output: Digital / Analog
Built-in Intersection Recognition: 4 types (Crossroad, T-shaped, Right turn & Straight, Left turn & Straight)
Built-in Algorithm Speed: 5 adjustable levels
Matrix Laser Ranging Sensor:
Interface: I2C / UART / USB (PH2.0-4P & TYPE-C)
Matrix Resolution: 8x8 (64 points)
Modes: Matrix measurement / Intelligent obstacle avoidance
I2C Address: 4 selectable (0x30 - 0x33)
Ranging Update Rate: 15Hz - 60Hz
Ranging Range: 20mm - 4000mm
Accuracy (20-200mm): ±11mm (white targets), ±12mm (gray targets)
Accuracy (200-4000mm): ±5% (white targets), ±6% (gray targets)
Detection Angle: 60° H x 60° V (90° Diagonal)
Laser Safety: Class 1 compliant
Firmware Update: Supported via USB
Light Sensors:
Quantity: 2
Data Range: 0 - 1023
Infrared Receiver: 1
Motors & Motion Control
Motors: 2x N20 Metal Motors
Interface: PH2.0 - 2P
Power Supply: Independent 5V regulated
Mounting: Screw-fixed, detachable
Encoders & PID Control:
Encoders: 2 (Magnetic induction, 4-line resolution)
PID Control: For precise distance and angle control
Speed Measurement Unit: Centimeters per minute (Note: Consider "cm/s" for more conventional robotics speed representation)
Lighting & Audio Indication:
RGB LEDs:
Ambient Lights: 4x WS2812 (Full R255 G255 B255 color spectrum)
Car Headlights: 2x Programmable RGB (Red, Green, Yellow, Blue, Purple, Cyan, White)
Buzzer: 1
Mechanical, Expansion & Other Features:
Mounting & Adjustment:
Metal Bracket Parts: 2
Bracket Adjustment: 1-axis, 270° range (M3 thumb screws)
PCB Threaded Interfaces: 2
Expansion: 14x Extended GPIOs
Protection: Bottom acrylic protection plate
Firmware Upgrade: Dedicated interface and button
Shipping List
- Maqueen Plus V3 Baseboard x1
- Metal Motor with Encoder and Connection Cable (already installed on the baseboard) x2
- AA Battery Board x1
- Matrix Laser Ranging Sensor x1
- PH2.0 - 4P Sensor Connection Cable x1
- Wheels x2
- Line-Tracking Map x1
- Screwdriver x1
- Metal Support Frame x1
- Metal Mounting Bracket x1
- 35mm Mounting Copper Pillars x5
- M3 Mounting Screws x5
- M3 Thumb Screws x4
