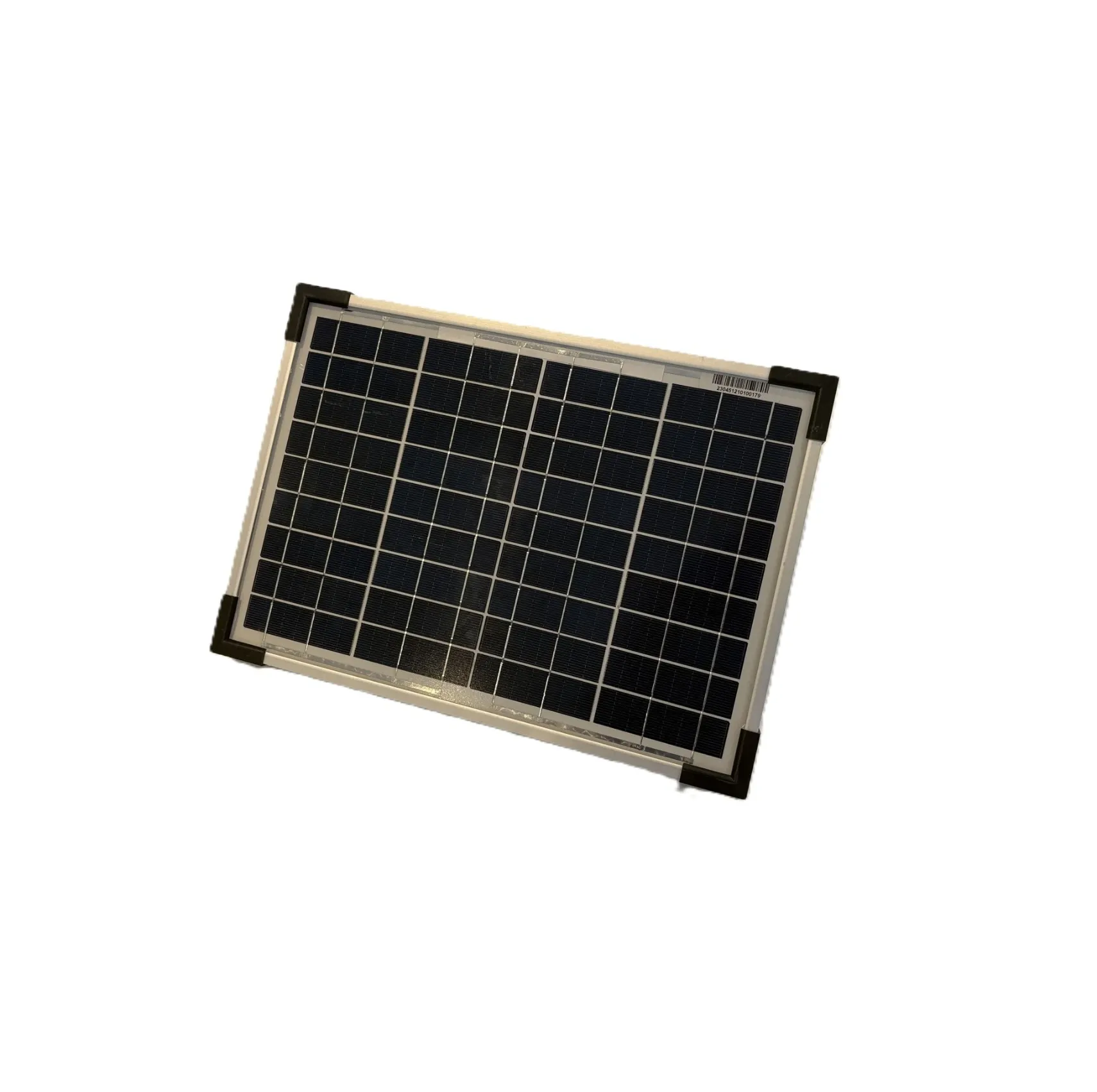

Solar panel with energy meter for Arduino®

Monitor the energy from the solar panel. With the included USB charger, you can for example charge a smartphone.

129.95 € 129.95 € (Tax included)

Add to cart

Sales conditions
Contact us for a free quote

Documents
Arduino_Solar_Energy.ino

Internal Reference: RED-3001

Contents

  • Solar panel 10W
  • Arduino UNO R4 WiFi
  • USB cable for Arduino UNO R4
  • Energy meter
  • USB charger with 2 outputs
  • Holder for solar panel and electronics
  • All necessary cables and accessories

Assembly instructions

Assemble energy meter, Arduino board and USB charger

Connect the wires to the USB charger (pay attention to the polarity)

Screw the wires into the energy meter (pay attention to the colour)

Connect the data cable to the energy meter (pay attention to the position of the switches)

Connect the data cable to the Arduino board (pay attention to the colour)

Mount the solar panel on the holder

Example program

Install the Arduino IDE

Download the programand open it in the Arduino IDE software.

Select the correct Arduino board: UNO R4 WiFi

Activate the Serial Monitor and set the baud rate to 115200
