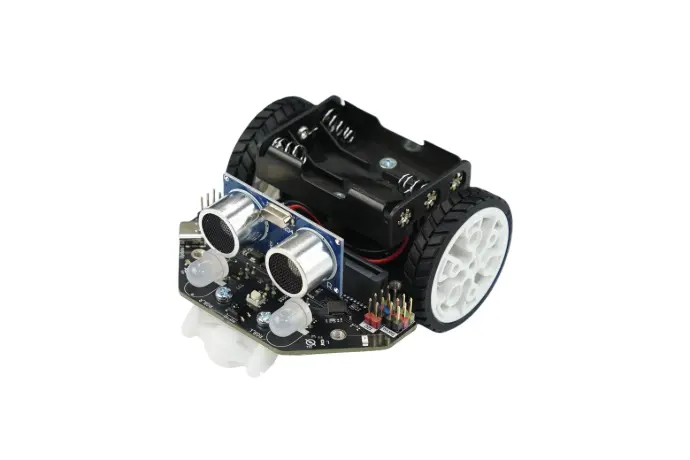

DFRobot Maqueen Lite V5 for micro:bit
The Maqueen Lite V5 STEM Robot offers easy installation, robust motors, and multitasking capabilities. This robot is suitable for children aged 8 and above to start with coding, IoT, and automation. Ideal for STEM education and robot competitions.
Internal Reference:
DFR-MBT0046
Barcode:
MBT0046
Are you fed up with robotics kits for the classroom breaking down halfway through the lesson? The Maqueen Lite V5 STEM robot puts an end to frustrations with pre-calibrated algorithms for line following, crash-resistant motors, and ease of use straight out of the box. This robot is fully assembled and compatible with micro:bit, and is designed for teachers and students aged 8 and above.
Effortlessly follow lines
The Maqueen Lite V5 revolutionises line following for STEM robots. With 3 sensors and an innovative built-in algorithm in the hardware, this line-following robot ensures smooth navigation with a single programming block. This breakthrough puts an end to frustrating installation issues, allowing students to achieve success quickly and ignite their passion for robotics.
Powerful multitasking capabilities
With the line-following algorithm integrated at the chip level, the Maqueen Lite V5 effectively gains an additional processing core. This allows the micro:bit to utilise its resources to perform multiple functions simultaneously, such as avoiding obstacles, light displays, sensor measurements, and image transitions, while flawlessly following lines, thereby enriching the educational possibilities.
Reliable and protected motor system
The Maqueen Lite V5 is designed with sustainability in mind and features precisely tuned metal motors, which have been selected after thorough testing for optimal performance and reliability. The motors are replaceable and fully enclosed, significantly reducing the risk of damage from dirt such as hair. This STEM car is built to last in a classroom.
Attractive lighting and light sensors
The Maqueen Lite V5 is equipped with two strategically placed light intensity sensors and can detect the positions of light sources, enabling fascinating applications such as light-seeking and light-avoiding behaviour. Combined with 2 extra large RGB headlights and 4 RGB ambient lights, this robot creates captivating visual effects that enhance the learning process and enjoyment.
Thoughtful extra features
The Maqueen Lite V5 features practical functions, such as a battery indicator to monitor remaining energy consumption and a simple firmware upgrade function, ensuring the robot stays up-to-date.
Specifications
- Power Supply: 3.5V - 5V DC / Batteries: 3x AA (1.5V Alkaline or 1.2V Ni-MH)
- Line follower with 3 sensors
- 2 RGB headlights and 4 programmable RGB LEDs
- 2 light sensors
- 1 Ultrasonic sensor (Model: HC-SR04)
- 2 Motors Type: N20 Metal Motor
- 1 Infrared Receiver
- 1 Buzzer
- 3 GPIO expansions
- 2 I2C Interfaces
- 2 connections for Servo Motor
- 6 mounting holes for mechanical extensions
- 1 Firmware Upgrade Interface
In the box
Maqueen Lite V5 STEM Robot ×1
Line-tracking map ×1
Ultrasonic sensor ×1
Opgelet
Remind: micro:bit board and batteries are not included.
