Introduction

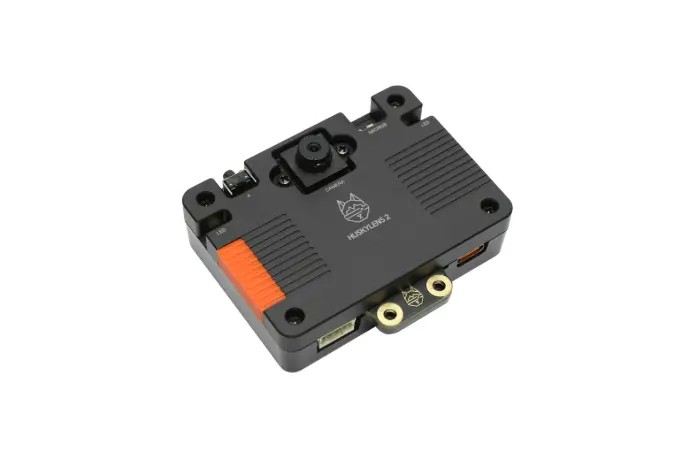

HUSKYLENS 2 is a next-generation AI vision sensor designed to put powerful machine vision into the hands of every creator. It operates on a 1.6GHz dual-core processor with an integrated 6 TOPS AI accelerator, running all algorithms directly on-device for high-speed, low-latency results. Its core design centers on three key strengths: Rich AI Model Support, featuring 20+ built-in, ready-to-use algorithms, along with the flexibility to deploy custom-trained models; Flexible LLM Interaction, capable of both calling large models and providing local, real-world perception to LLMs via its built-in MCP service; and Broad Compatibility, ensuring seamless connection with a wide range of main controllers. Equipped with a replaceable 2MP camera, a vibrant 2.4-inch IPS touchscreen, microphone, speaker, and indicator lights, HUSKYLENS 2 is the definitive tool for educational robotics, interactive systems, and intelligent device prototyping.
Introduction
HUSKYLENS 2 is a next-generation AI vision sensor designed to put powerful machine vision into the hands of every creator. It operates on a 1.6GHz dual-core processor with an integrated 6 TOPS AI accelerator, running all algorithms directly on-device for high-speed, low-latency results. Its core design centers on three key strengths: Rich AI Model Support, featuring 20+ built-in, ready-to-use algorithms, along with the flexibility to deploy custom-trained models; Flexible LLM Interaction, capable of both calling large models and providing local, real-world perception to LLMs via its built-in MCP service; and Broad Compatibility, ensuring seamless connection with a wide range of main controllers. Equipped with a replaceable 2MP camera, a vibrant 2.4-inch IPS touchscreen, microphone, speaker, and indicator lights, HUSKYLENS 2 is the definitive tool for educational robotics, interactive systems, and intelligent device prototyping.
Start Creating Instantly with Over 20 Built-in AI Models
HUSKYLENS 2 is designed for immediate productivity. It comes pre-loaded with a diverse library of more than 20 AI models, covering a wide array of common computer vision tasks from face recognition to object tracking. This extensive collection allows users to start building projects right out of the box with minimal setup, significantly lowering the barrier to entry for AI application development.
Broad Compatibility with Mainstream Controllers
With standard UART and I2C interfaces, HUSKYLENS 2 ensures seamless connectivity with a wide range of microcontrollers and single-board computers, including Arduino, micro:bit, Raspberry Pi, ESP32, UNIHIKER K10, and UNIHIKER M10.
Specifications
- CPUKendryte K230 dual-core, 1.6 GHz
- Compute power6TOPS
- Memory1 GB LPDDR4
- Storage8GB EMMC
- Screen2.4" IPS, 640×480 resolution,
Full-lamination capacitive touchscreen - CameraGC2093, 2 MP,
1/2.9”, 60 FPS - MicrophoneMEMS Microphones
- Speaker1W Speaker
- Other ComponentsButtonx1RGB lightx1Fill lightx2
- InterfacesType-Cx14Pin Gravityx1TF card slotx2
- Dimensions70*58*19mm
- Weight90g (Without Packaging)
- Operating Voltage3.3-5V
- Power Consumption1.5-3W
- Wi-Fi Module2.4GHz WiFi 6 (Card-Based)
- Built-in ModelsFace Detection, Face Recognition, Facial Feature Detection, Object Recognition, Object Tracking, Color Recognition, Object Classification, Self-Learning Classification, Instance Segmentation, Hand Detection, Hand Keypoint Detection, Gesture Recognition, Human Detection, Human Keypoint Detection, Pose Recognition, License Plate Recognition, Text Recognition, Line Tracking, Expression Recognition, Gaze Direction Detection, Face Orientation Detection, Qr Code Recognition, Barcode Recognition, Tag Recognition, Fall Detection
- Built-in ApplicationsCamera, Video Recorder, Real-Time Video Transmission, MCP Service, Model Deployment
