Introduction

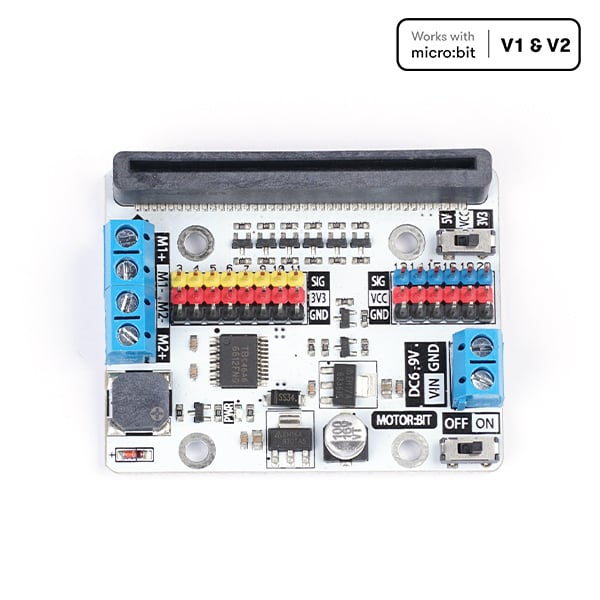

Motor:bit is a motor control board based on micro:bit. It features an integrated TB6612 motor control chip, which is used to drive two motors with a maximum DC current of 1.2A per channel. It also has 12 GVS ports (for connecting OCTOPUS series electronic blocks) and 1 IIC communication port. These ports allow you to expand with various sensors and electronic modules. On the board, there are P3-P7, P9-P10 IO ports for directly controlling 3.3V devices; P13-P16, P19-P20 (IIC port) support the voltage switch of 3.3V/5V. By shifting the onboard voltage switch, it is possible to control 3.3V or 5V devices. Additionally, you can play music with the buzzer on motor:bit. Motor:bit is fully designed for DIY enthusiasts. You can use it to create your own smart car or more fun projects.
Features
Supports 2 DC motors.
Maximale stuurstroom van een enkel kanaal is 1,2A.
Breid 14-kanaals IO-poorten uit en leid deze uit via GVS-pinnen. Hiervan ondersteunen 6 poorten de 3V/5V spanningsschakelaar.
Met 1 passieve buzzer aan boord.
Parameters
Productnaam motor:bit
Versie Nr. V1.6
SKU EF03406
DC Voedingsspanning DC 6~12V
DC Motor Aangedreven 2
Maximale Uitgangsstroom van Elke Motorconnector 1.2A
Uitbreidbare Digitale IO Poort 12
Uitbreidbare Analoge IO Poort 3
IIC Connector Ondersteuning
Passieve Buzzer Ondersteuning
Afmeting 60mm x 47.5mm
Netto Gewicht 20g
