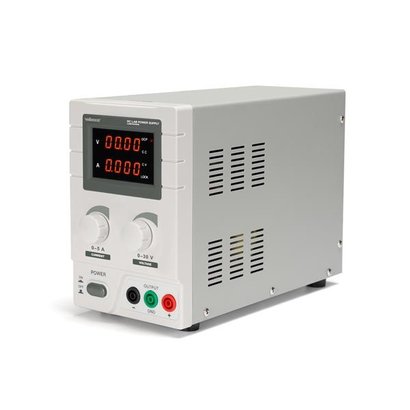

LABPS3005N Lab power supply 0-30 VDC / 0-5 A
Sale

Product description

  • EAN:5410329643027
  • Article number:VEL-LABPS3005N
  • Availability: In stock
  • Delivery time:1-3 days

→ Contact us for a free quote

Most important features

  • dual LED display for voltage and current
  • Fine and coarse control of voltage and current
  • voltage or current limitation
  • output connectors: insulated safety connections
  • low-noise and temperature-controlled fan
  • 4-digit display
  • key lock
  • constant voltage / constant current
  • resolution: 10 mV / 1 mA
  • protections: fuse 3.15 A / 250 V, overcurrent protection, thermal protection (95 ° C)
  • input voltage: 220 VAC (± 10%) 50/60 Hz
  • output: voltage: 0-30 VDC / 0-5 A
  • power: max. 150 W
  • power factor (cos Phi): 0.82
  • ripple voltage: = / <1.0 mV (rms)
  • ripple current: 3 mA (rms)
  • operating temperature: 0 to +40 ° C, <90% relative humidity
  • autonomy at full load: 8 hrs
  • dimensions: 117 x 190 x 270 mm
  • weight: 4.8 kg
  • Colour: Grey
